Description

SKYLINE SK-100ANT Antenna

Antenna for SKYLINE SK-100 base station

Running on 1.8G/1.9G frequency

RJ-45 connection to SK-100 base station

Regist button

external 12VDC avation and 5VDC Micro-B power connector

Skyline series wireless intercom system is a full duplex communication system.

This system is composed of SK-100 main station, SK-100ANT antenna and SK-190 belt pack.

The other brand devices can be connected to the TF-1900 wireless interface through the two-wire/four-wire connector, and use the SK-190 wireless communication belt pack to form the system.

The Skyline system adopts DECT  technology and supports 1.8G/1.9G frequency switching.

Full duplex digital communication, long distance, high audio quality.

It can transmit music audio without distortion

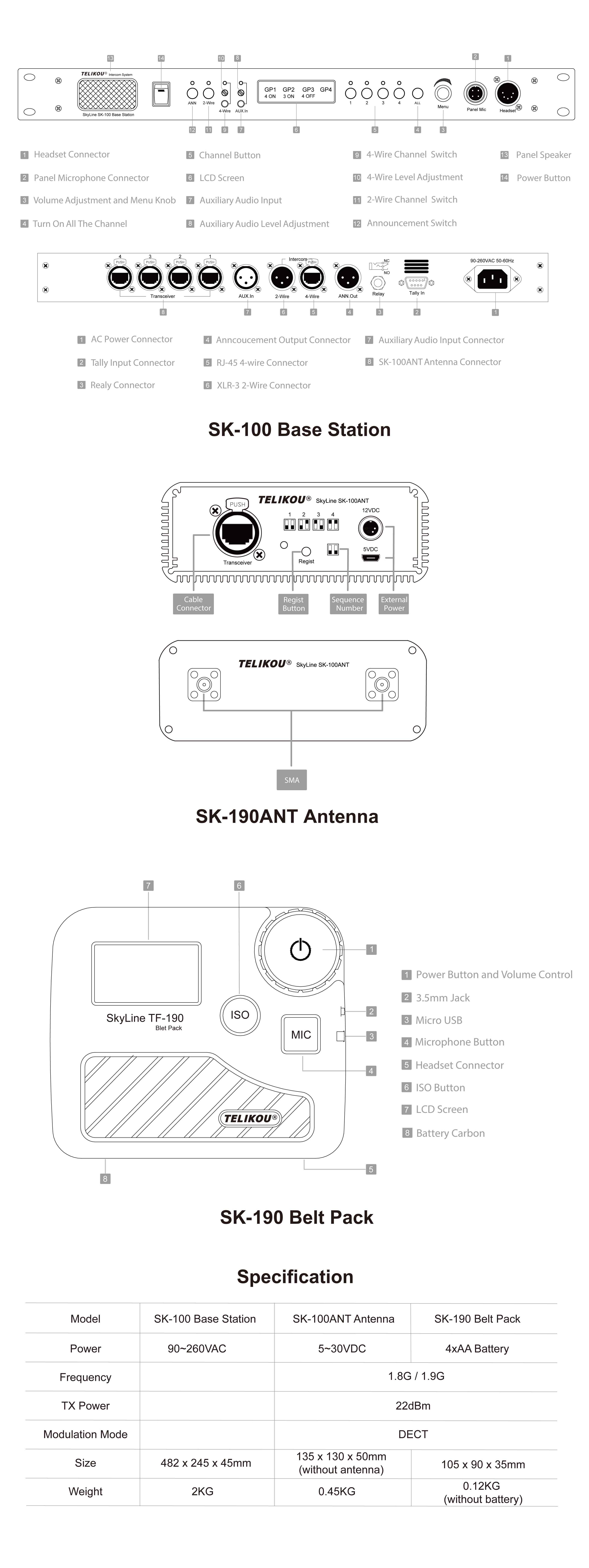

SK-100 main station has four antenna connectors, which supports max 4 SK-100ANT antennas and 16 SK-190 belt pack.

SK-100 main station has 2-wire/4-wire connector, Announcement output, background input, relay connector and 4 Tally inputs.

SK-100 main station has internal panel speaker, supports gooseneck microphone and headset.

SK-100ANT antenna is connected to SK-100 main station through shielded RJ-45 network cable.

The max length is 500-600 meters, it greatly extend the wireless signal coverage.

SK-100ANT can use local 5V DC power at far end.

SK-190 belt pack adopts internal antenna. It comes with a Non-slip silicone sleeve.

SK-190 belt pack can register up to four SK-100ANT / TF-1900 wireless antenna.

SK-1900 can switch between different antennas to realize roaming function between antennas.

SK-190 belt pack use 4xAA batteries. Rechargeable batteries can be used and charged through the body's Micro-USB port.

Beside XLR headset connector, SK-190 also has a 3.5mm jack, which supports in-ear only listen earphone.

The ISO button on SK-190 belt pack can make an individual communication with main station or other belt pack under same antenna, without listening by others.

TF-1900 wireless interface one 2-wire and one 4-wire connector.

It can add wireless function for any other devices through these 2-wire and 4-wire connectors. TF-1900 also supports the roaming function for SK-190 belt pack.

Skyline series wireless intercom system TX transmit power is max 20dBm, the max signal distance is 350m.

Skyline system supports roaming function. The SK-190 belt pack can be switchable between different antenna.

Strong anti-interference ability, good transmission sound quality, can transmit music without distortion.
